Chiller

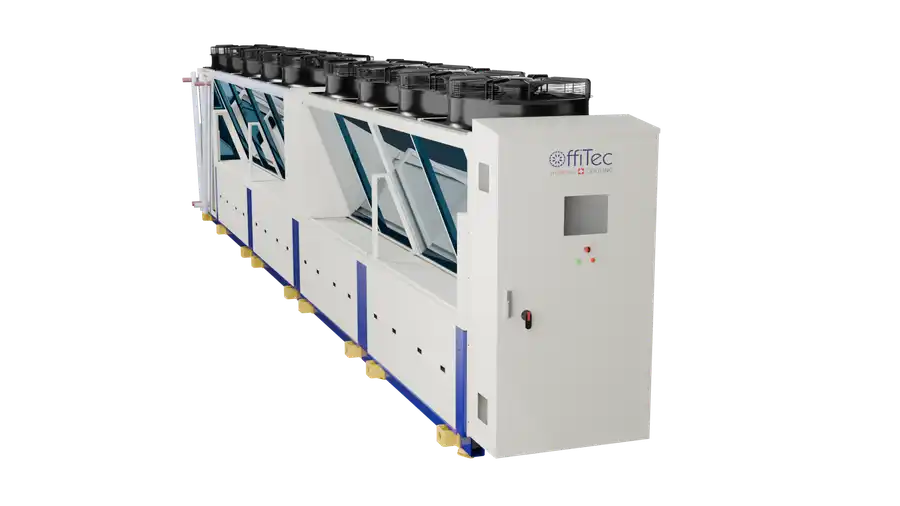

The OffiTec modular high-capacity air-cooled chiller unit is engineered for large industrial facilities, process cooling lines, data centers, and high-flow HVAC applications. Its extended modular body accommodates multiple compressors and large-surface heat exchangers, delivering exceptional efficie
Capacity Range
Capacity from 126 to 1585 kW
Fans
Diameter ~ 800, 900, 1000 mm, AC or EC motor
Benefits
Highly efficient
Climate Lab
Detailed engineering data for OffiTec Modular High-Capacity Air-Cooled Industrial Chiller Unit – including air system, installation dimensions, and energy performance.
| EBM Pabst, Frascold, ABB, Schneider |
The OffiTec modular high-capacity air-cooled chiller unit is engineered for large industrial facilities, process cooling lines, data centers, and high-flow HVAC applications. Its extended modular body accommodates multiple compressors and large-surface heat exchangers, delivering exceptional efficiency. With advanced axial fan technology, an intelligent PLC control system, and a durable steel structure, it ensures reliable 24/7 operation. Its flexible modular design enables easy capacity expansion while maintaining optimized energy consumption.
Capacity Range: 200 kW – 2000 kW
Design: Long modular frame with multi-fan top section
Cooling Type: Air-cooled
Compressor Type: Scroll / Screw (multi-compressor configuration)
Refrigerant: R410A / R32 / R134a
Condenser: Large-surface microchannel or copper tube–aluminum fin
Evaporator: Plate or shell & tube
Power Supply: 400V – 50Hz
Control System: PLC-based intelligent control with touch panel
Fan Type: High-airflow, low-noise axial fans
Protections:
High/low pressure protection
Overcurrent protection
Anti-freeze protection
Automatic restart
Body: Galvanized steel with electrostatic powder coating
Operating Range: -10°C to +48°C
Communication: Modbus / BACnet / RS485 (optional)
