Chiller

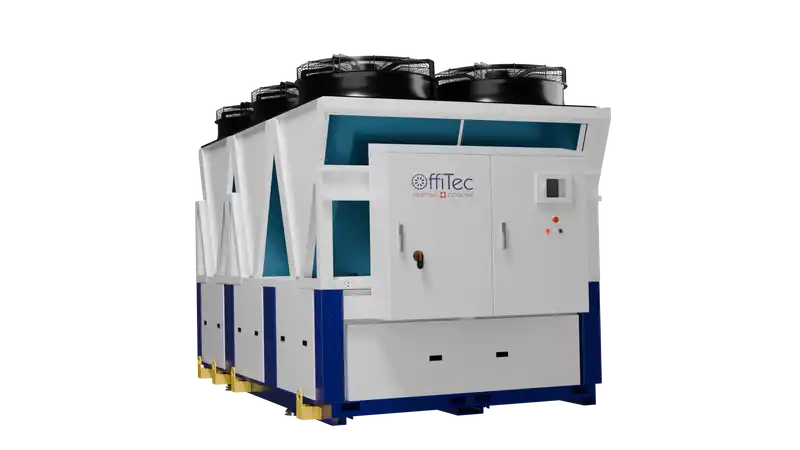

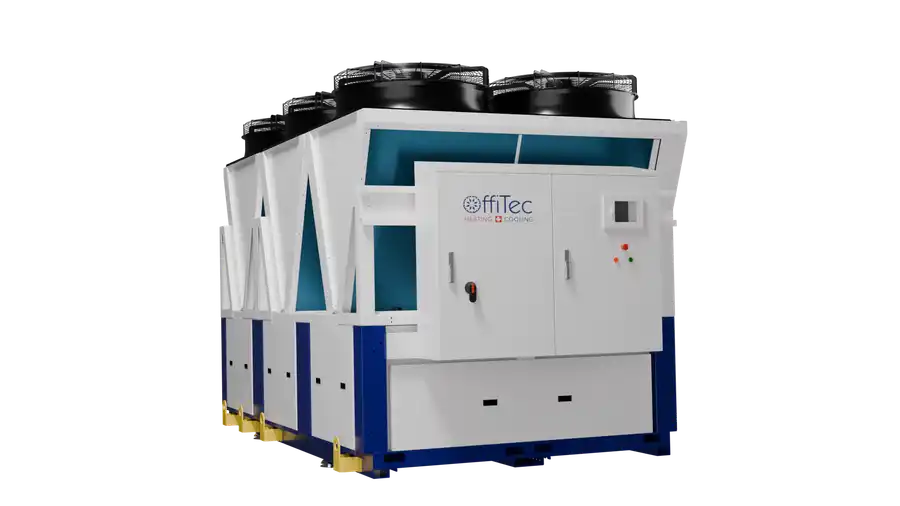

The OffiTec air-cooled chiller unit provides a highly efficient and reliable cooling solution for industrial facilities, data centers, commercial buildings, and process cooling applications. Its advanced fan technology, optimized heat exchangers, and durable body design ensure long service life. Wit
Capacity Range
72-2600kW
Energy Class
EER up to 5.8
Benefits
Highly efficient
Refrigerant
R290, R600, CO2, R1234ze, R32, R513A
Climate Lab
Detailed engineering data for OffiTec Air-Cooled Industrial Chiller Unit – including air system, installation dimensions, and energy performance.
| EBM Pabst, Frascold, ABB, Schneider |
The OffiTec air-cooled chiller unit provides a highly efficient and reliable cooling solution for industrial facilities, data centers, commercial buildings, and process cooling applications. Its advanced fan technology, optimized heat exchangers, and durable body design ensure long service life. With its modular structure, it adapts easily to different capacity requirements, while its energy-saving intelligent control system reduces operating costs.
Capacity Range: 50 kW – 1500 kW
Cooling Type: Air-cooled with axial fans
Compressor Type: Scroll / Screw (depending on model)
Refrigerant: R410A / R32 / R134a
Condenser: Microchannel or copper tube–aluminum fin
Evaporator: Plate or shell & tube
Power Supply: 400V – 50Hz
Control System: PLC or microprocessor-based intelligent control
Fan Type: Low-noise, high-efficiency axial fans
Protections: High/low pressure, overcurrent, anti-freeze, auto-restart
Body: Galvanized steel with electrostatic powder coating
Operating Temperature Range: -10°C to +46°C
Communication: Modbus / BACnet (optional)
