Air Conditioning
Cooling without Wind Enjoy more comfortable cooling with Gentle Breeze mode. Up to 1,422 micro-holes create a soft laminar airflow. Avoid harsh, direct cold draft - and unlock superior refreshment. Innovative Engineering More than one thousand of perfectly placed 2-3mm micro-holes are arrange
Capacity Range
2.60-12.20 kw
Fans
Home, Office, etc
Benefits
A+++, silent, 5 years of warranty
Climate Lab

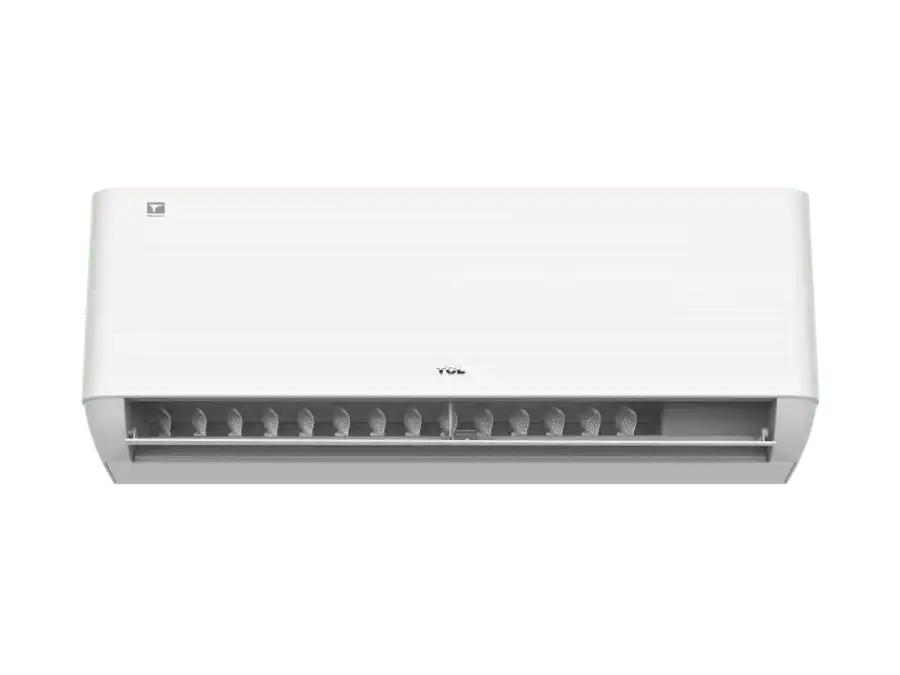

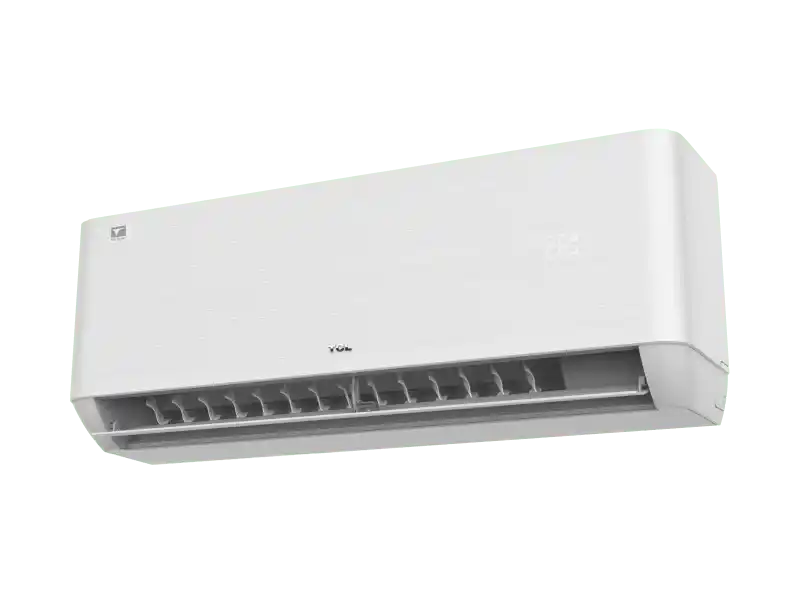

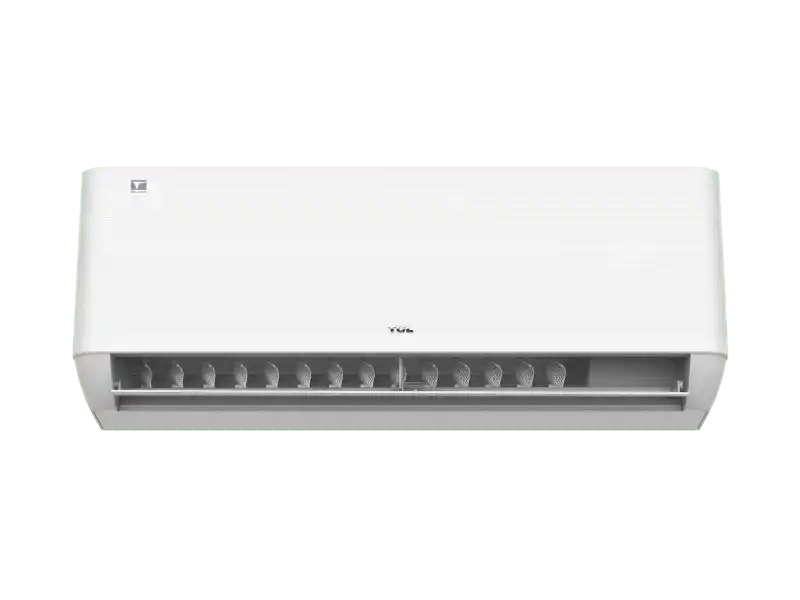

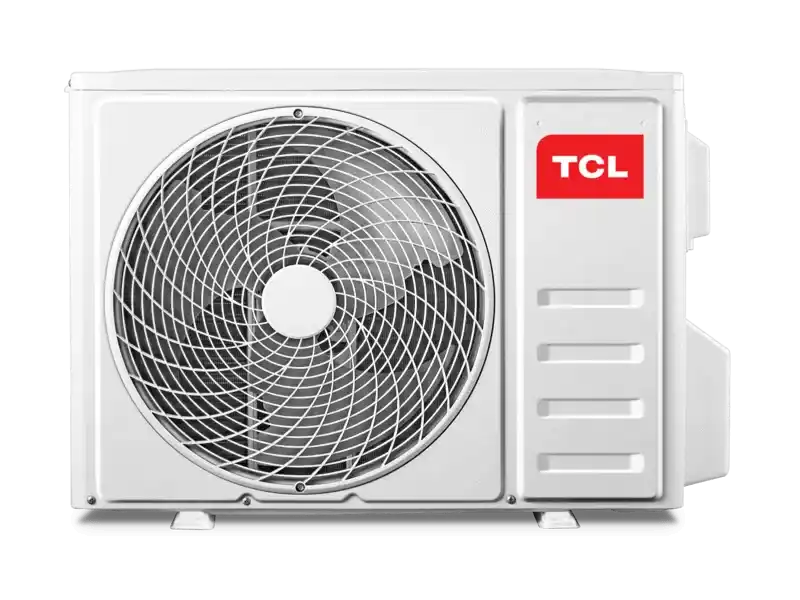

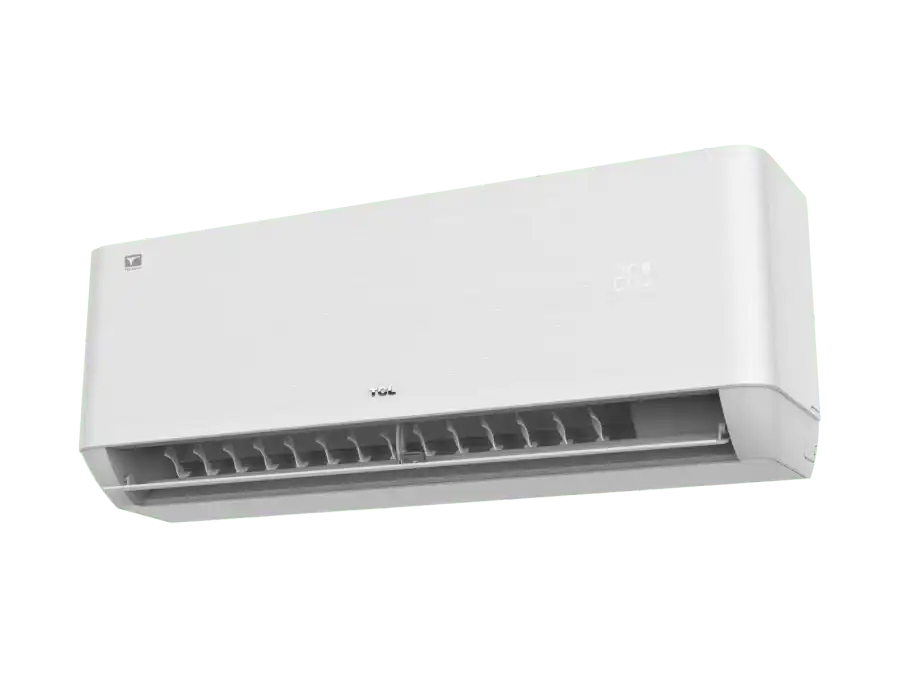

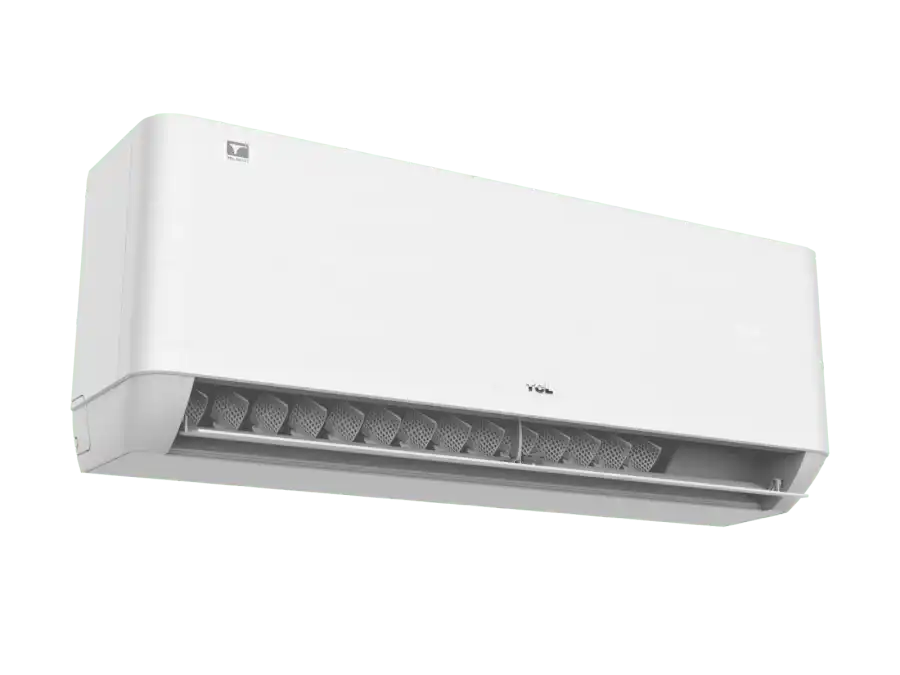

Detailed engineering data for The GentleCool Series – including air system, installation dimensions, and energy performance.
| Connecting Pipe - Gas (Inches) | Φ12(1/2'') |
|---|---|
| Connecting Pipe - Liquid (Inches) | Φ6(1/4'') |
| Max. Pipe length (Meters) | 15 |
| Max. Height difference (Meters) | 5 |
| Connecting Wiring - Size x Core number | 0.75x4 |
| Net dimensions (W x H x D) - Indoor (mm) | 1097×332×222 |
|---|---|

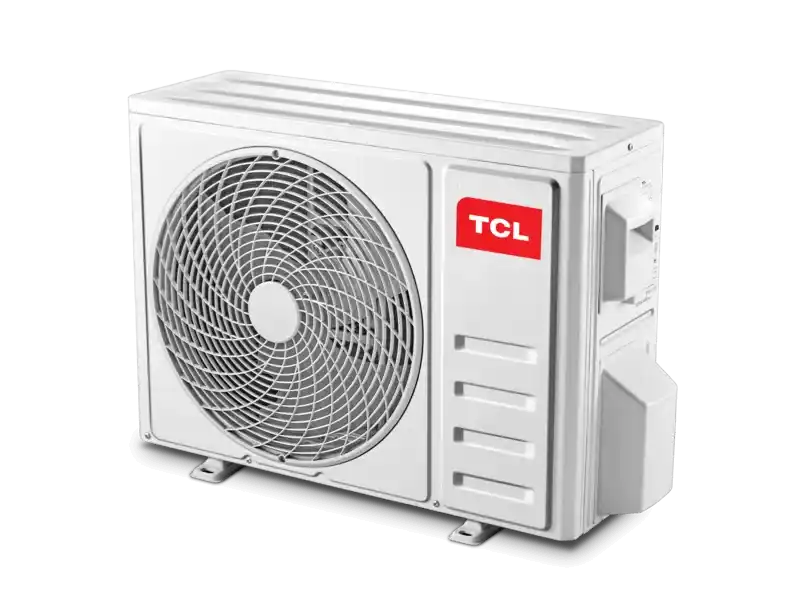

| Net dimensions (W x H x D) - Outdoor (mm) | 853×602×349 |
| Net weight - Indoor (kg) | 13.5 |
| Net weight - Outdoor (kg) | 34 |
| Packing dimensions (W x H x D ) - Indoor (mm) | 1165×405×295 |
| Packing dimensions (W x H x D ) - Outdoor (mm) | 890×628×385 |
| Gross weight - Indoor (kg) | 16.5 |
| Gross weight - Outdoor (without pipe) (kg) | 38 |
| HP | 2 |
|---|---|
| Power supply (V) | 220-240V~50Hz |
| Voltage Range (V) | 165~265 |
| Rated cooling capacity (W) | 5200(1200~6000) |
| Rated cooling capacity (Btu/h) | 18000(4094～20472) |
| Rated heating capacity (W) | 5200(1200~6000) |
| Rated heating capacity (Btu/h) | 18000(4094～20472) |
| Energy Class (Cooling) | 1 |
| Energy Class (Heating) | 1 |
| AEER for cooling (W/W) | 3.68 |
| ACOP for heating (W/W) | 4.29 |
| Outdoor Operating Temperature Range (℃) | -15℃～52℃ |
| Indoor Operating temperature range (℃) | 16℃～31℃ |
| Moisture removal (L/H) | 2 |
| Sound Power - Indoor (dB(A)) | 50 |
| Sound Power - Outdoor (dB(A)) | 63 |
| Refrigerant (Gram) | R32:960g |
|---|---|
| Compressor | SANYO C-6RZ146H3DBF |
Enjoy more comfortable cooling with Gentle Breeze mode. Up to 1,422 micro-holes create a soft laminar airflow. Avoid harsh, direct cold draft - and unlock superior refreshment.
More than one thousand of perfectly placed 2-3mm micro-holes are arranged on S-Shape vanes, dispersing air more widely throughout the room.

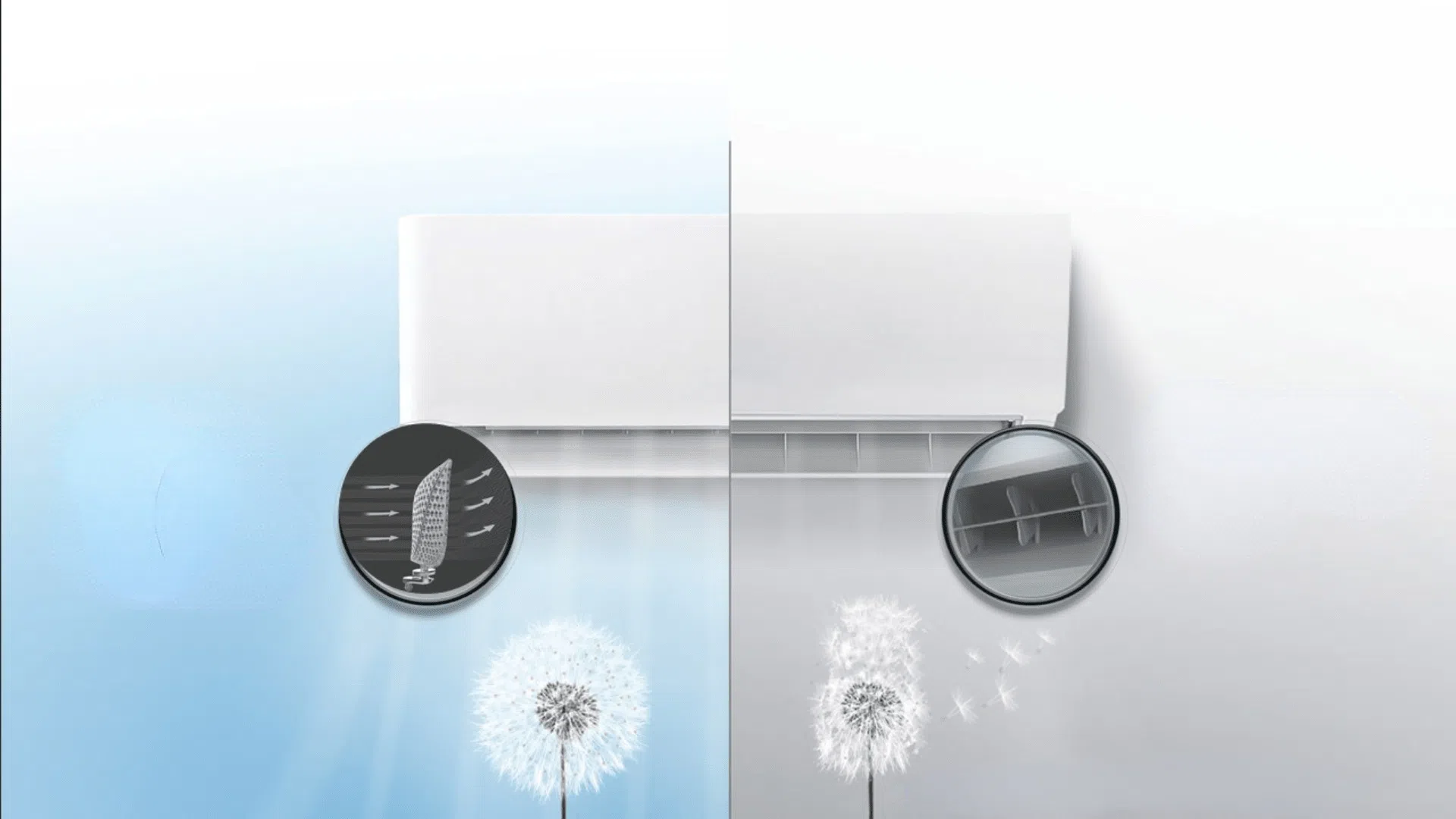

The dandelion remains still with Gentle Breeze mode. Enjoy a more Gentle-style of Air Conditioner Breeze, just as nature intended.
Gentle Breeze mode is innovated for all of you. Enjoy premium comfort which helps you work, rest, and play at home with superior experience.
Enjoy 24/7 control via the TCL Home App for smart devices. Remotely operate functions via App, or control via simple voice commands.
*TCL Home APP may not be available in all countries.

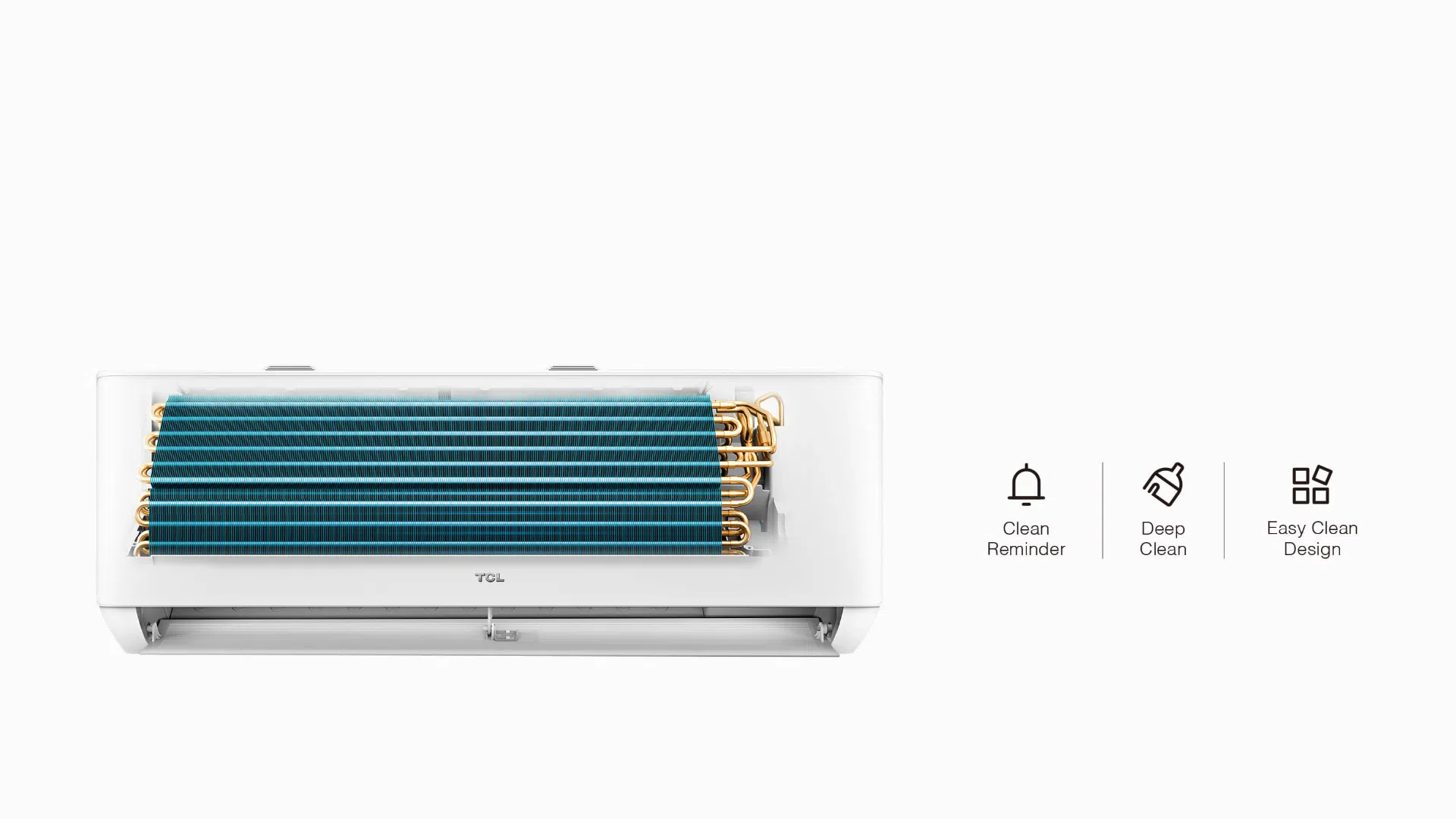

CleanXpress helps to keep the air in your room more fresh. Built to remind you when it's time to clean, and help to make cleaning easier than ever.
Up to 60% Energy Saving
Save money and enjoy energy efficiency with Smart Inverter. With up to 60% energy saving, Smart Inverter helps reach the setting temperature more quickly, cooling the coils to 18℃ 30s, heating it up to 40℃ in 60s and keep temperature stable within ±1℃.
(*Data applied to specific models in lab testing conditions)

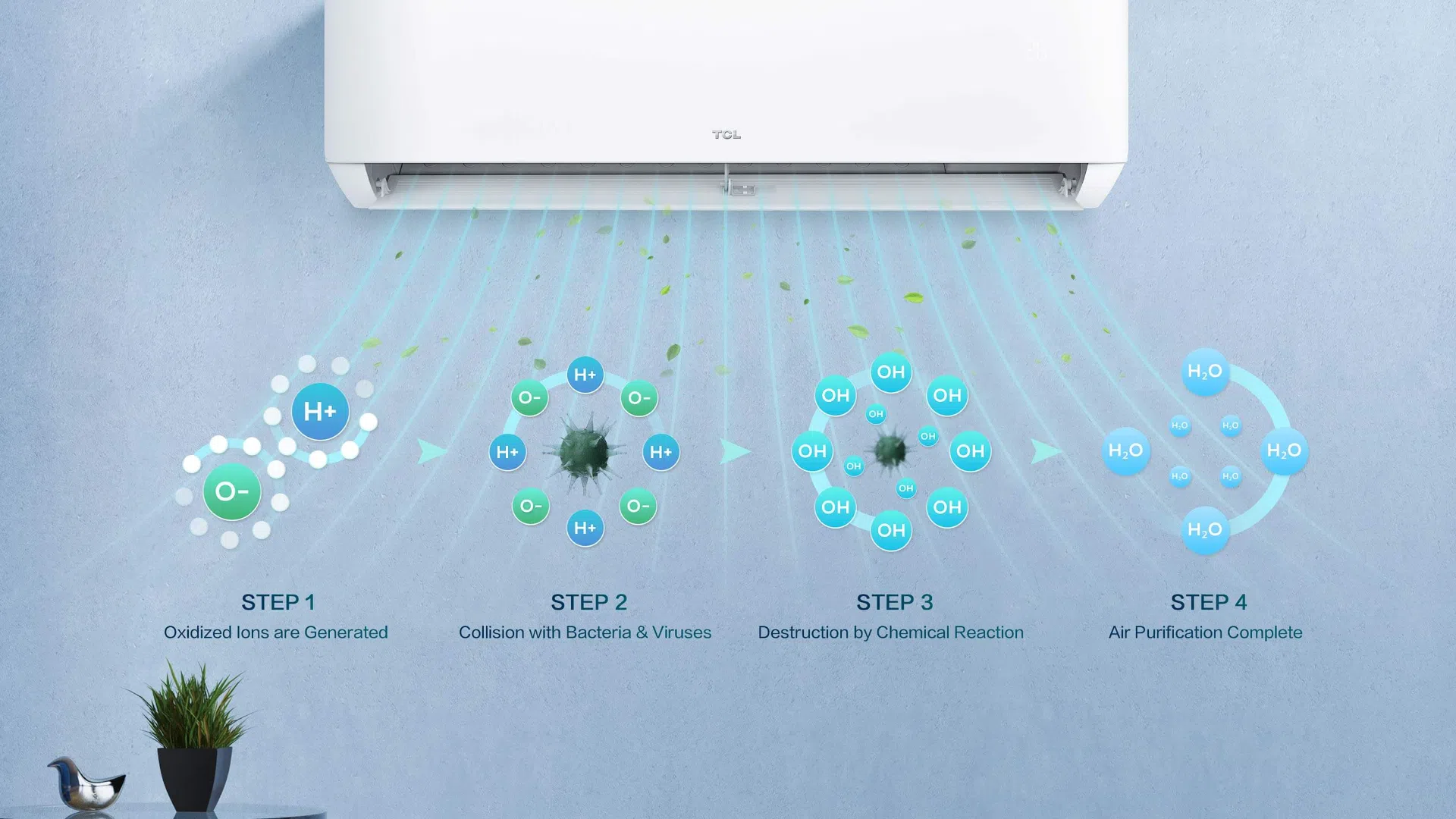

Oxidized ions are diffused into the air, colliding with bacteria and viruses. Enjoy peace of mind performance, clinically proven to inactivate protein structures, and counter airborne toxins.

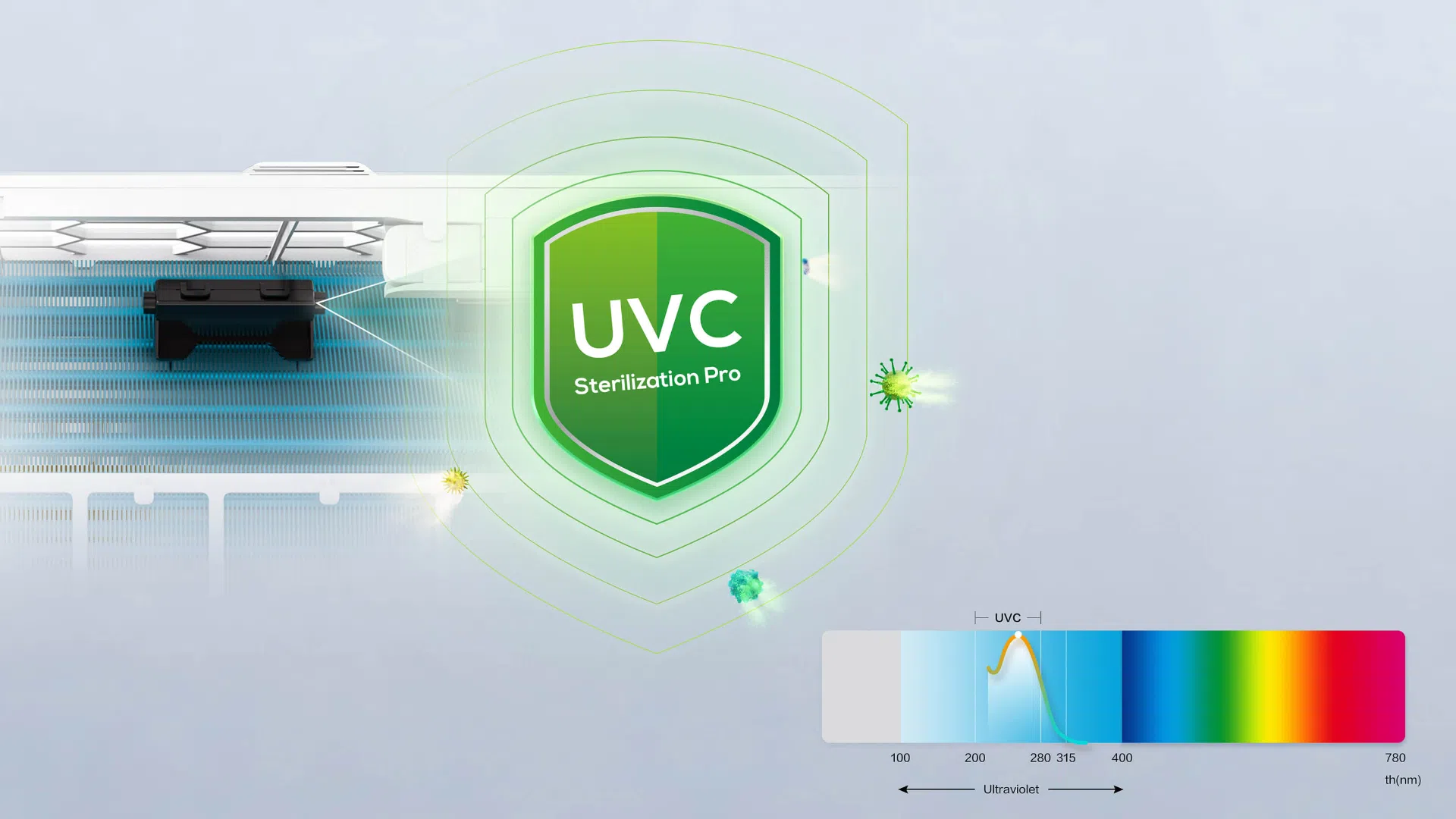

Ultraviolet light offers superior performance in countering toxins. A certified purification procedure destroys the DNA/RNA of viruses and bacteria - delivering sterilized air, with no negative side effects.
*Proven to kill 98.66% of germs, including E.coli, Staphylococcus aureus, Influenza A virus subtype H1N1.
