Enhanced vapor injection technology Injecting part of the gaseous refrigerant into the compression chamber can greatly improve the low-temperature heating capacity and effectively reduce the exhaust temperature. SEER TMV6+ full DC inverter intelligent VRF product, its
Climate Lab
Detailed engineering data for TMV6+ Intelligent VRF – including air system, installation dimensions, and energy performance.

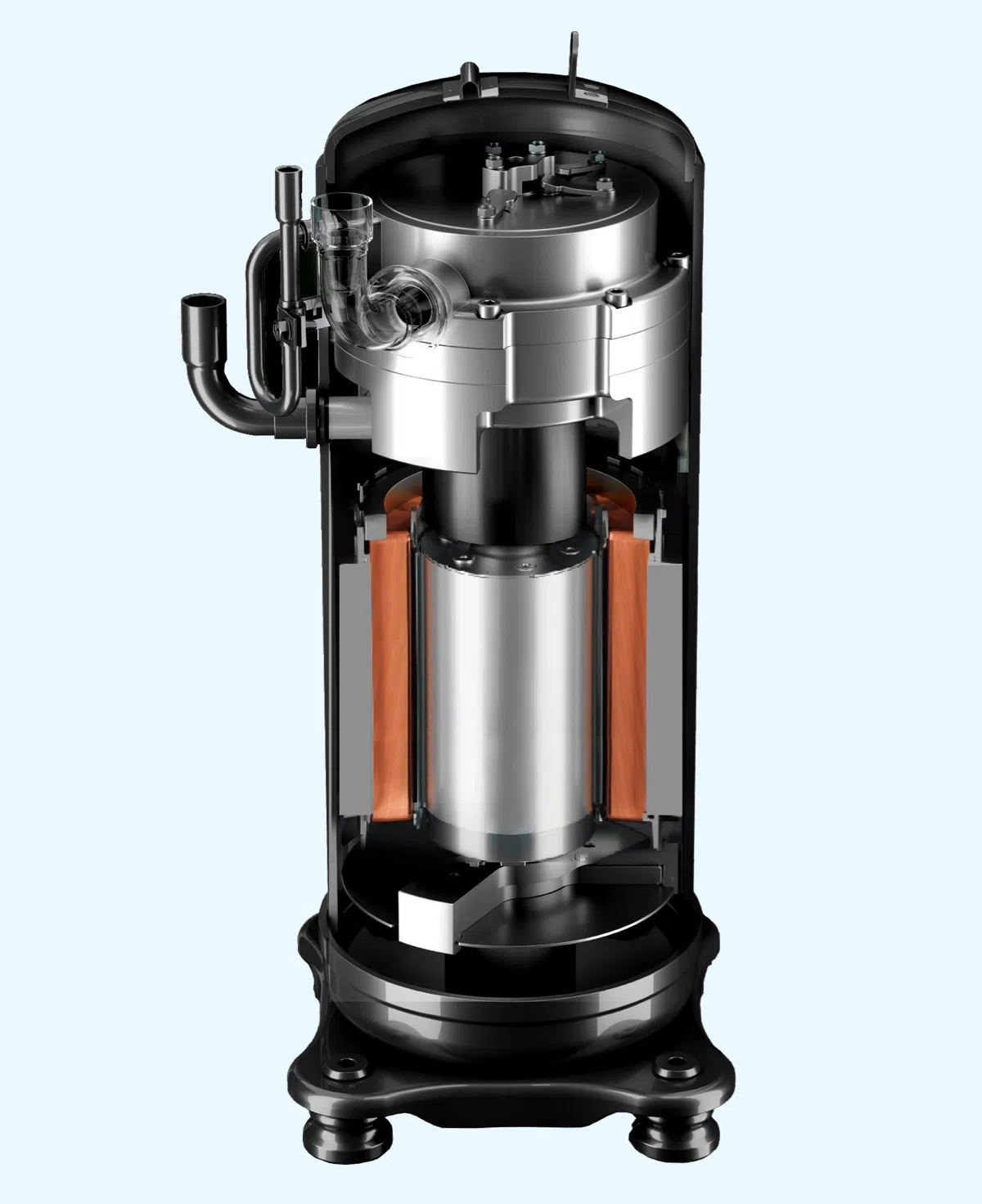

Injecting part of the gaseous refrigerant
into the compression chamber can greatly
improve the low-temperature heating
capacity and effectively reduce the exhaust
temperature.

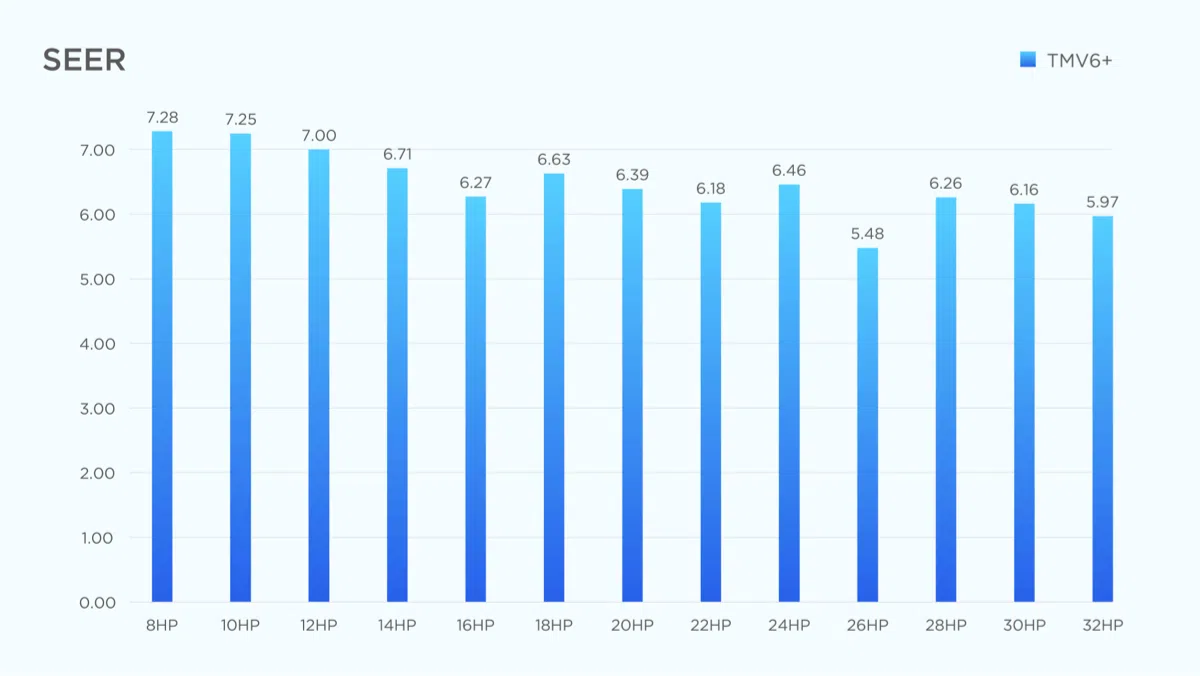

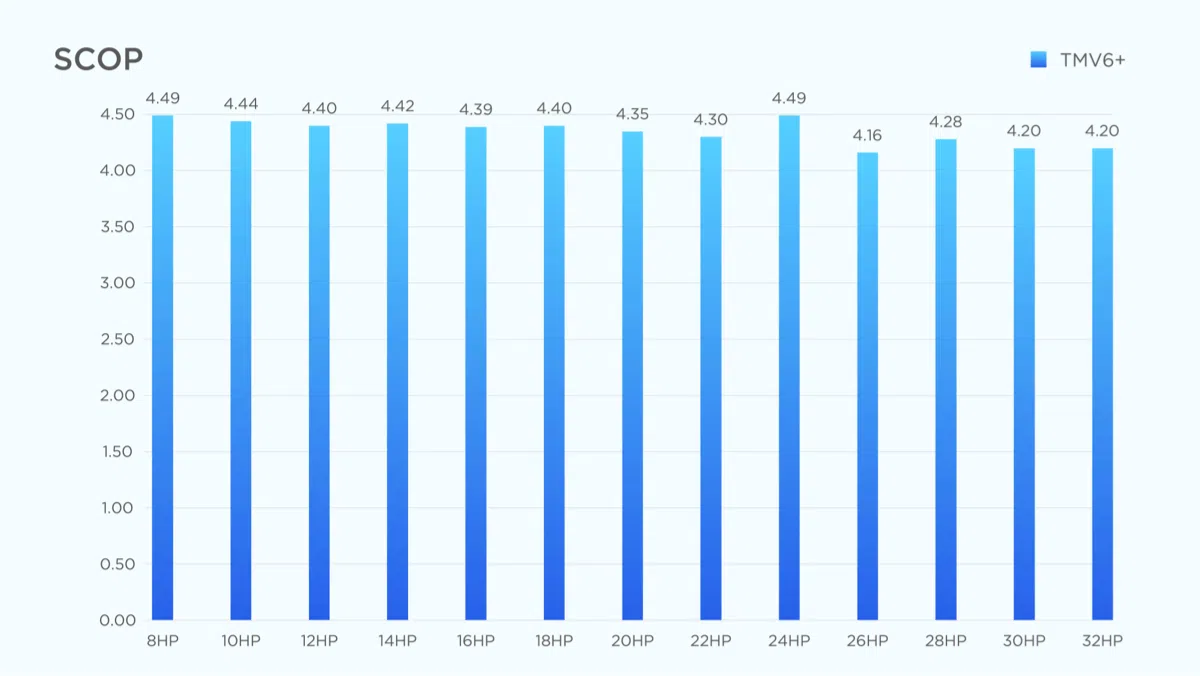

TMV6+ full DC inverter intelligent VRF product, its seasonal energy efficiency ratio is up to 7.28, seasonal coefficient of energy is up to 4.49
TMV6+ full DC inverter intelligent VRF product, its seasonal energy efficiency ratio is up to 4.49, seasonal coefficient of energy is up to 4.16

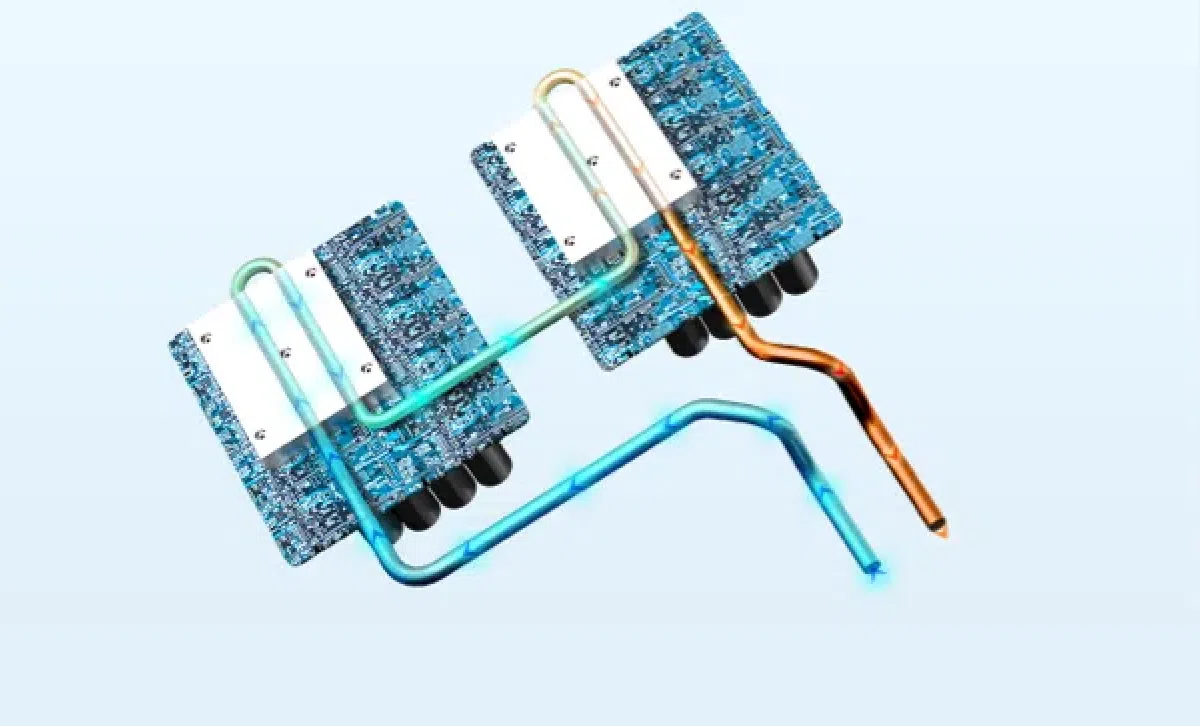

The wraparound refrigerant radiator can stably and efficiently take away the heat in the frequency conversion module of outdoor unit, improve the electrical reliability of the unit when working in high-temperature environment, and ensuring stable and safe operation.

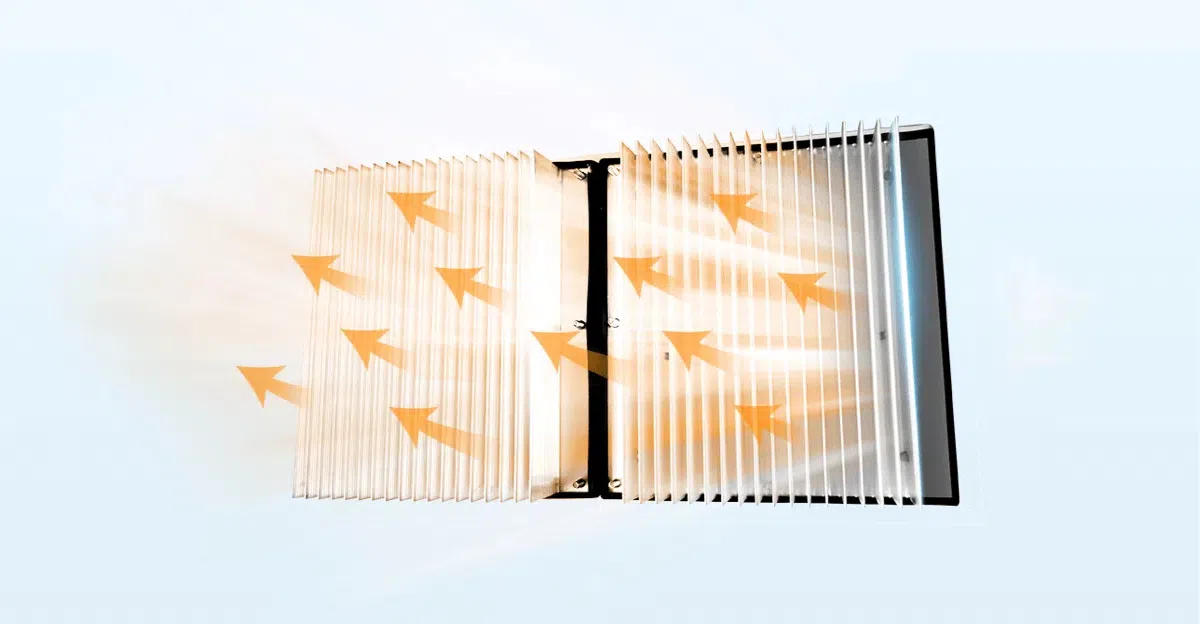

Through the fan (fan) to strengthen the ventilation, strengthen the cooling effect, to maintain stable and reliable system operation.

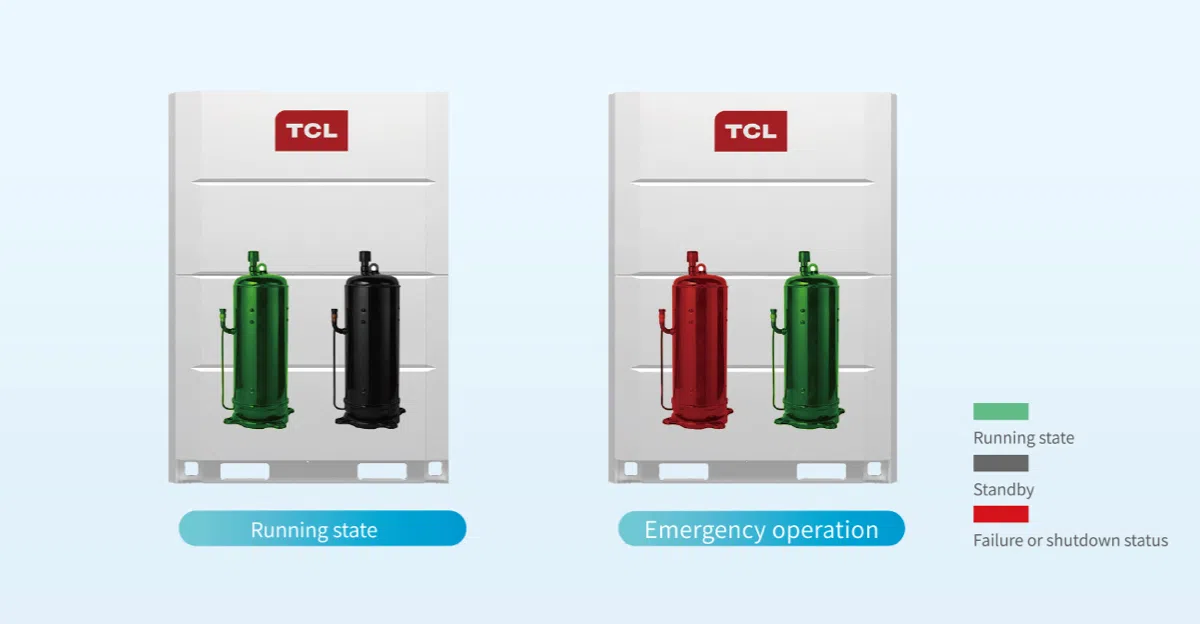

In units with two compressors, if one compressor fails, the other compressor can run on its own, to ensure the air conditioning system can work stably.

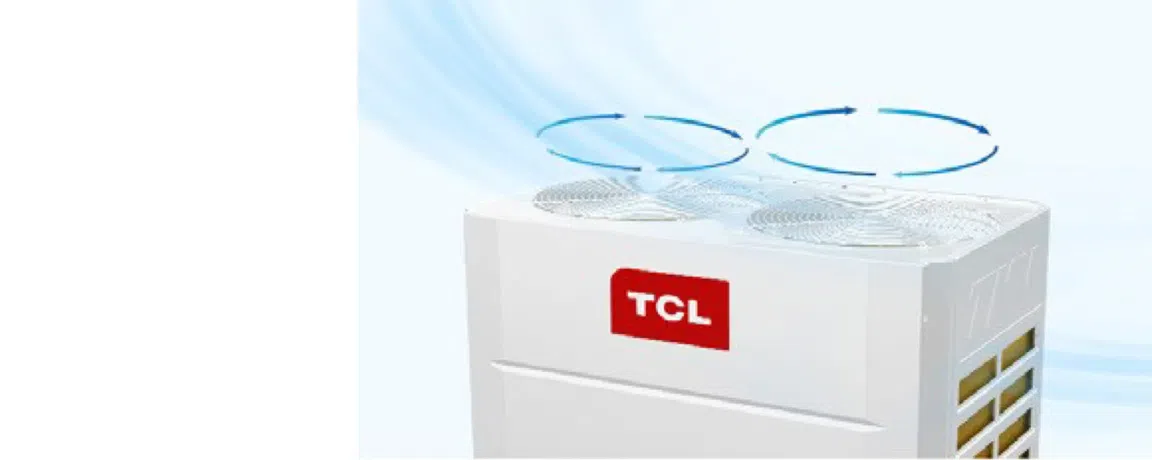

Some outdoor units are designed with dual fan, if the one fan motor fails, the other motor also can work normally, to avoid impact consumer's work and life.

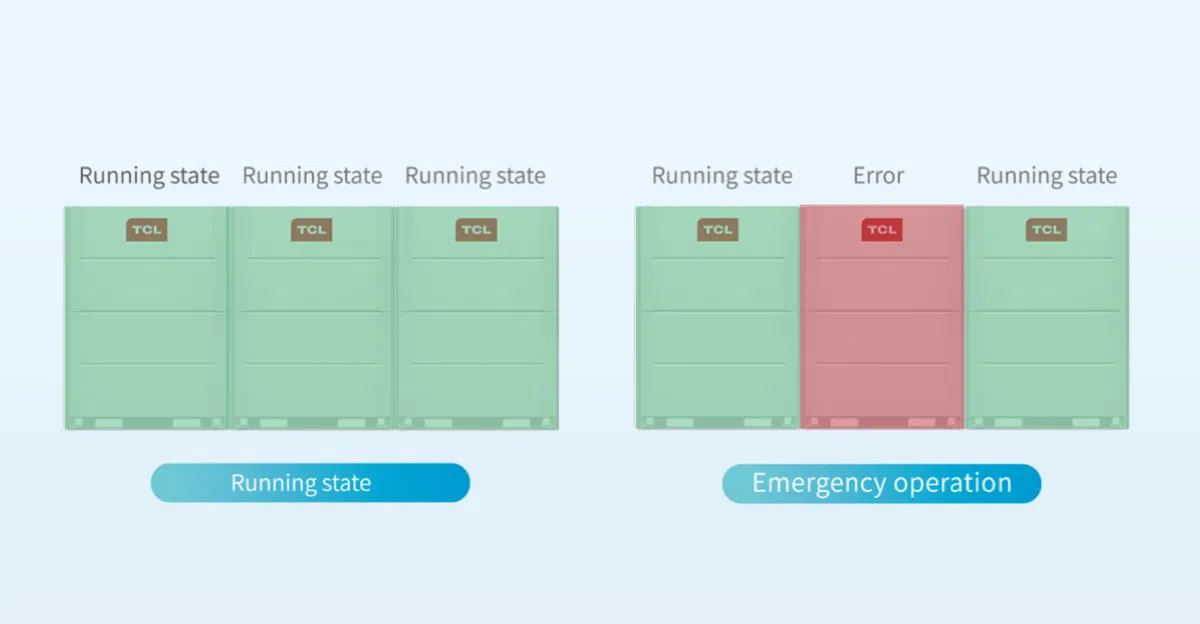

In a multi-unit system, if one outdoor unit fails, the other modules provide backup so that the system can continue operating.
The external force blows the outdoor unit fan to rotate in reverse. At this time, start and stop the rotation of the fan, and then restart the fan motor in a forward rotation according to the normal procedure, so as not to damage the fan motors due to excessive starting current.

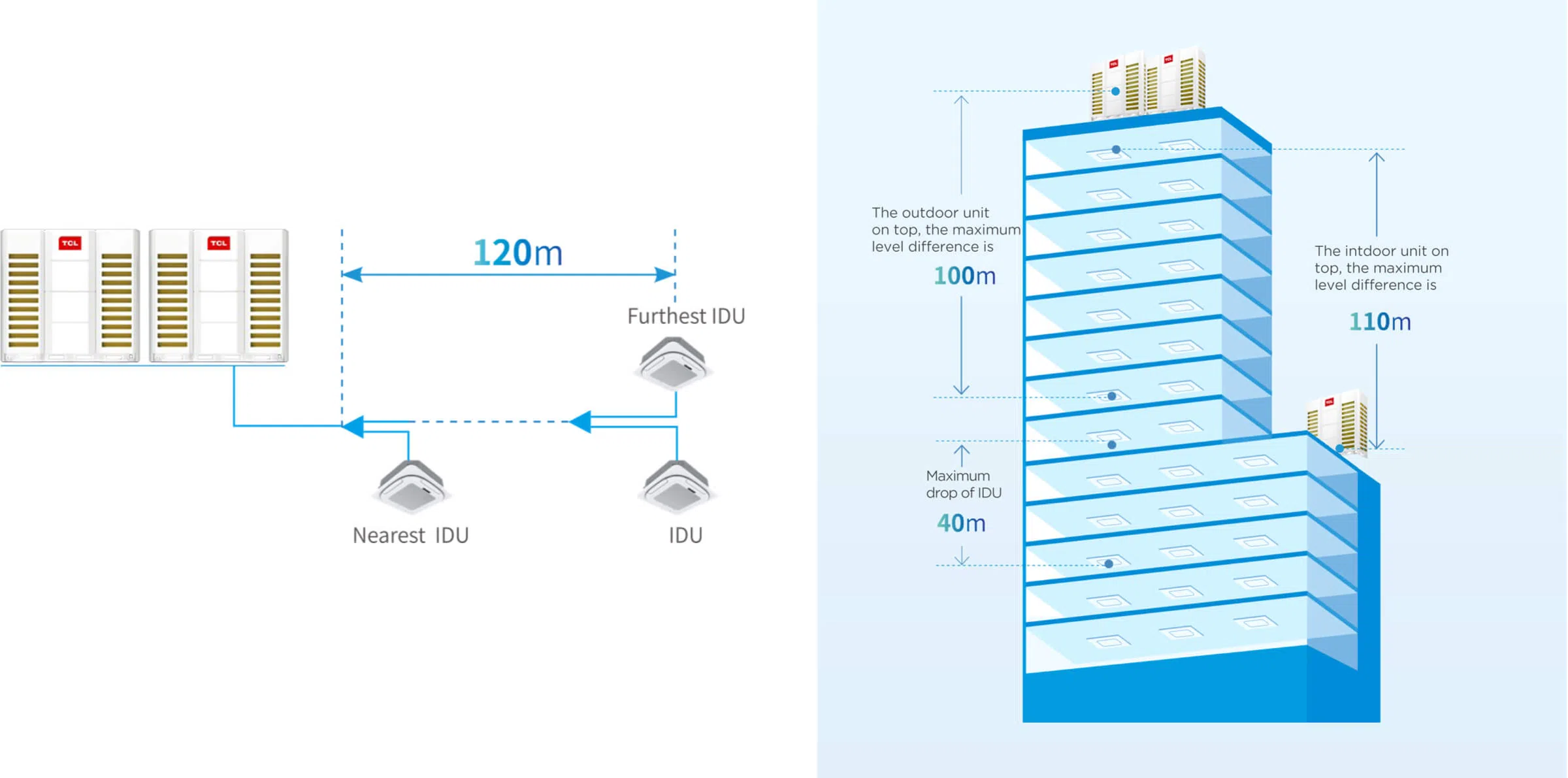

The industry-leading piping length, with a total length of 1100m, makes floor design more flexible.
The max distance between the IDU and the ODU (the higher ODU) is 100m.
The max distance between the IDU and the ODU (the lower ODU) is 110m
The maximum distance between indoor units is 40m.
The maximum actual single pipe length is 220m.
The maximum equivalent single tube length is 240m.
The equivalent length from first indoor distributor to last indoor uni120m.
